Thruvisc
Flow Through
Small Bore Solution

0.1
cP
OR 1%

Accuracy
5.5
mm
0.2"

Bore
100
BAR
1500 psi

Pressure

Clear Bore. Clear Results

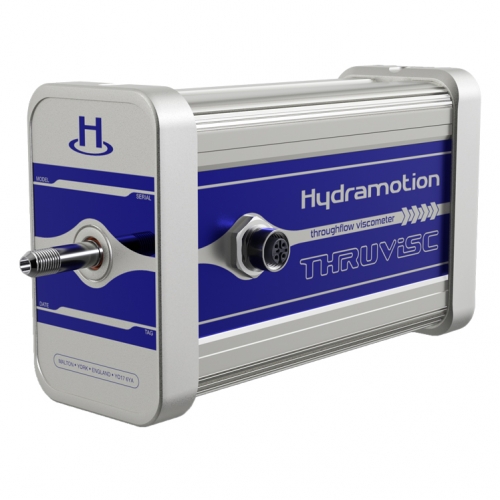

The ThruVisc is the perfect solution for measuring viscosity in small bore pipes and tubes. Each viscometer in the range has a completely clear bore which is ideal for sanitary applications or any situation where there is risk of contamination.

The sensor also has all the attributes found in every Hydramotion viscometer: high accuracy, no moving parts, negligible maintenance, and a robust construction to withstand harsh duty and high pressure.

10x
Throughput Speed

Radically transform throughput speed by plumbing Thruvisc directly into continuous flow, completely eliminating the need for sampling.

And with accurate, repeatable readings every second, Thruvisc eradicates the variance often associated with sample-based methods. Leaving you more time to focus on the process, and more confidence in the result.

Nowhere to Hide

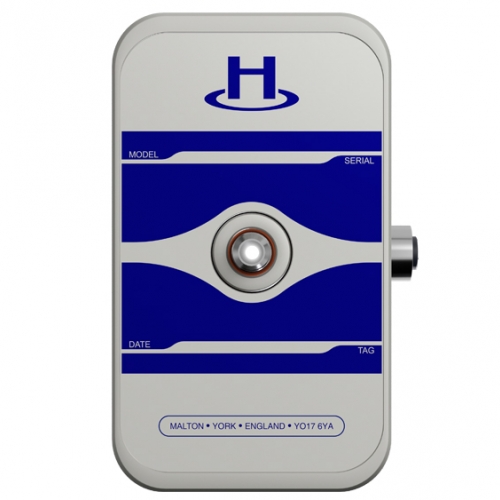

The seamless flow-tube at the heart of the ThruVisc presents a clear uninterrupted pathway for the liquid with no hiding place for trapped fluid. This makes it compatible with pigging systems, as often used with paints, inks and coatings, where contamination from residual fluid in the system cannot be tolerated.

The fluid passes through the oscillating flow-tube and exerts a damping effect which is converted to viscosity. No measurement chamber required.

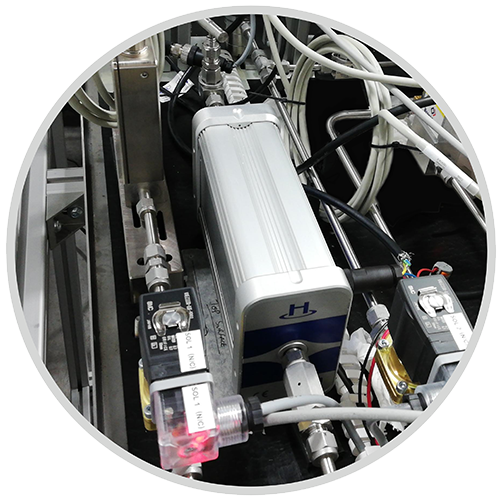

ThruVisc In Use


The compact sensor is not affected by flow, orientation or bubbles, and can be located anywhere in the system. It is available with a wide choice of tube/pipe fittings.

ThruViscs connect with all VP Processors giving the options for either simple single installations or complete integration with any plant-wide control systems.
